HDF-CL013
HAIDE
730729
| Availability: | |
|---|---|
| Quantity: | |
structure

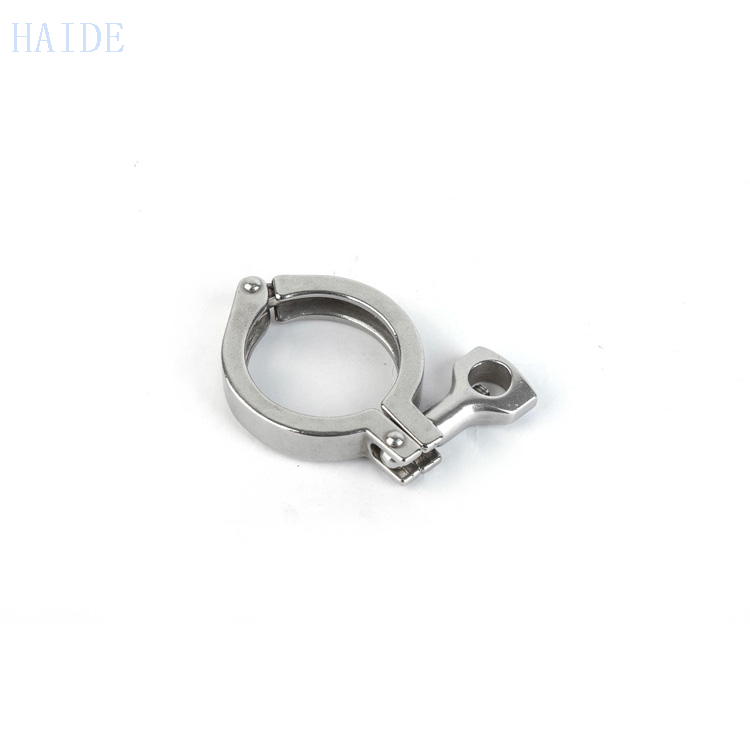

Body: The main body of the fixture is usually made of stainless steel and is used to secure pipes or fittings. The structural design of the main body should ensure the stability and sealing of the connection.
Wing nut: used for fastening fixtures, usually designed in an easy to operate form for quick installation and disassembly.
Sealing gasket: The fixture also includes a sealing gasket to ensure the sealing performance at the connection and prevent liquid leakage.
type
Single pin fixture: This type of fixture uses a single pin to secure the pipeline and is suitable for connecting smaller sized pipelines.
Double pin fixture: uses two pins to provide a more stable connection, suitable for medium-sized pipelines.
Three section fixture: composed of three parts, suitable for connections that require high strength and stability.
High pressure fixtures: designed specifically for high-pressure applications, capable of withstanding high pressures, suitable for high-pressure piping systems in the chemical and pharmaceutical industries.
Heavy duty fixtures: Used for large pipelines or applications that require additional strength, typically with larger dimensions and thicker walls.
| Application scope of stainless steel fixtures
conveying system
Pipeline connection: used to connect sanitary grade pipelines in food and beverage production lines, ensuring the sealing and hygiene of liquid raw materials (such as juice concentrates, milk, etc.) during transportation, and preventing contamination. For example, in breweries, stainless steel sanitary fixtures are used to connect pipes to equipment such as saccharification barrels.
Equipment connection: Connect various processing equipment (such as mixers, filling machines, etc.) to the pipeline system to ensure the smooth operation of the entire production line.
Processing equipment
Equipment fixation and connection: In food processing equipment such as cutting machines, grinders, mixers, etc., stainless steel sanitary fixtures are used to fix and connect various components of the equipment, ensuring the stability and reliability of the equipment. For example, on a beverage production line, stainless steel fixtures are used to secure components such as conveyor belts and chutes.
Storage equipment
Tank connection: used to connect storage tanks for food and beverages, ensuring the sealing and hygiene between the storage tanks and the piping system. For example, in dairy factories, stainless steel sanitary fixtures are used to connect the inlet and outlet pipelines of milk storage tanks.
Equipment fixation: Stainless steel sanitary fixtures are used to fix various components of the equipment in refrigeration equipment and display cabinets, ensuring the stability and hygiene of the equipment.
Cleaning and hygiene
Easy to clean: The surface of stainless steel sanitary fixtures is smooth, easy to clean, and can effectively prevent bacterial growth, meeting the strict hygiene requirements of the food and beverage industry.
Compliant with hygiene standards: Its design and manufacturing comply with hygiene standards such as ISO, DIN, 3A, etc., ensuring that the product will not be contaminated during the food and beverage production process.
