HD-BVS027
| Availability: | |
|---|---|
| Quantity: | |
|
Product Introduction

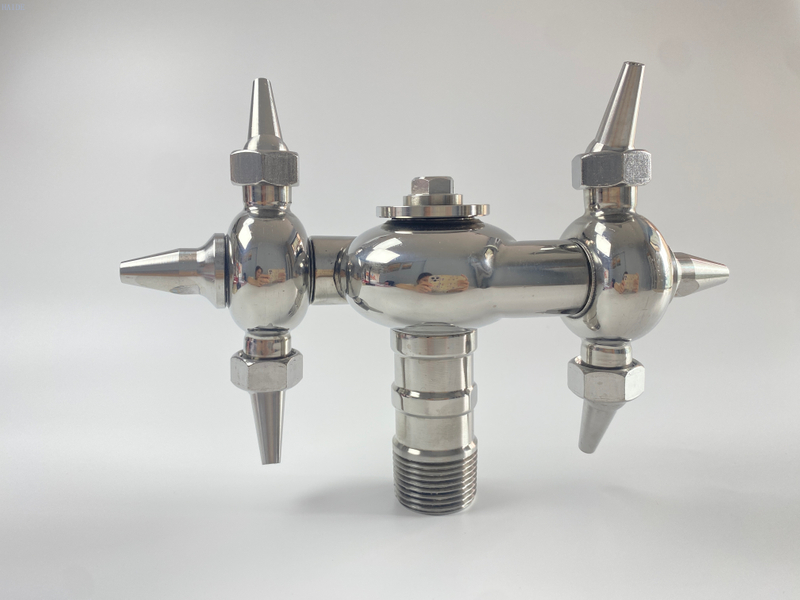

Sanitary Rotary Clean Ball
Reaction force drive:
When the cleaning solution is sprayed out through the nozzle, a reaction force is generated, which drives the cleaning ball to rotate. This design enables the cleaning ball to rotate on its own without the need for external power, thus achieving all-round cleaning.
Nozzle design:
The nozzle of the cleaning ball is designed as a fan-shaped jet, and the sprayed water creates a vortex inside the tank. This vortex can effectively remove residues on the tank wall, ensuring cleaning effectiveness.
Double bearing design:
To ensure the stability and durability of rotation, the cleaning ball usually adopts a double row bearing design. This design not only improves the smoothness of rotation, but also has self-cleaning and self-lubricating functions, meeting hygiene requirements.
Full coverage:
Through precise layout of rotation and nozzle, the cleaning ball can achieve 360 ° no dead angle cleaning. Especially for the spray rod itself and the top, it can be cleaned thoroughly to ensure that every corner inside the tank is cleaned.
| Technical Parameters
◆ Specifications: DN1-25/1"tobN-100/4"
◆ External structure and axis AISI 316L/304
◆Spring: AISI 304 ◆Washer: EPDM according to FDA 117.2600
◆Surface treatment:Ra ≤0.8μm
◆Gaskets have NBR, FPM (fluorine rubber) or PTFE, FDA117.2600(option)
◆Connection standard: Welding, thread, clamp, DIN, SMS, RJT,IDF,ISO,3A
◆Nominal pressure: 10 bar
◆Opening pressure:0.3bar(DN-25)0.2bar(DN-32/40)0.1bar(DN-50/100)
◆Operating temperature:-10 ℃ to+130℃(EPDM)
| Product Operate Guide
| Advantages and Characteristics
Hygiene performance
Excellent Material: Usually made of 304 or 316L stainless steel, these materials have good corrosion resistance and high temperature resistance, can adapt to various harsh environments, and will not cause pollution to cleaning media and products, meeting strict hygiene standards in industries such as food and pharmaceuticals.
Hygiene grade design: The overall structural design meets hygiene grade requirements, with a smooth surface and no dead corners, which is not easy to breed bacteria and residual dirt, and is easy to clean and disinfect, ensuring the hygiene and safety of the cleaning process.
Cleaning effect
Full coverage: Through precise layout of rotation and nozzles, 360 ° blind spot cleaning can be achieved, especially for the spray rod itself and the top, ensuring that every corner inside the tank is cleaned, effectively removing residues and improving cleaning quality.
Efficient cleaning: It can comprehensively and thoroughly clean the interior of the tank in a short period of time, improving production efficiency. The high-pressure water flow sprayed from the nozzle has an impact force on the tank wall, which can effectively remove dirt and residue. At the same time, the chemical components in the cleaning solution help dissolve and remove stubborn stains.
Strong adaptability: It can adapt to tanks of different shapes and sizes, whether they are circular, square, or irregularly shaped, and can be effectively cleaned to meet diverse cleaning needs.
|
