| Application scenarios:

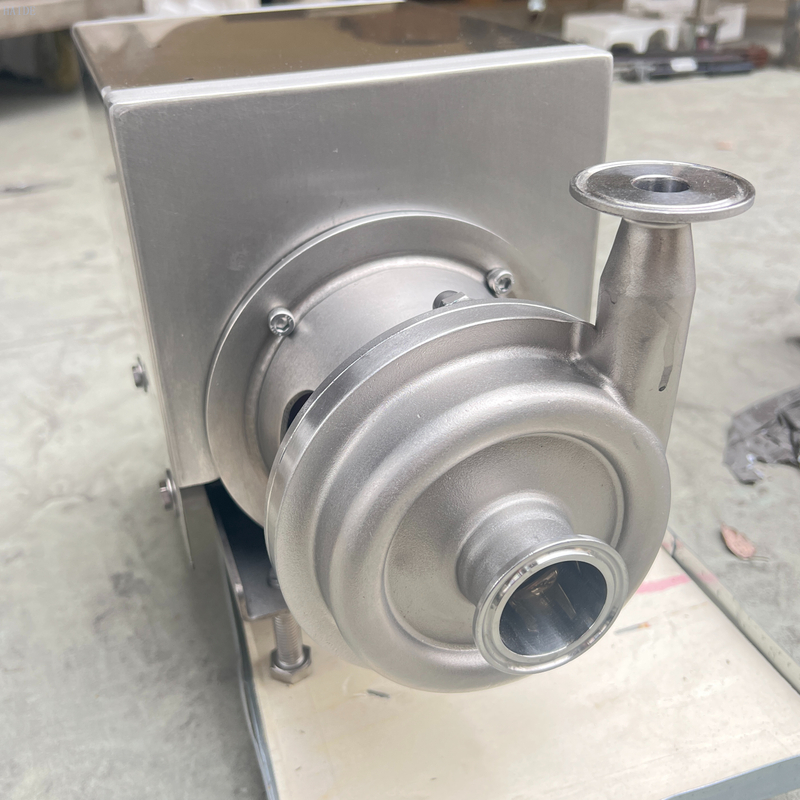

BAW centrifugal pump is an efficient and economical pump that not only meets the requirements of hygiene and product handling, but also has chemical stability, making it suitable for most areas of the hygiene industry
This pump is particularly suitable for conveying liquids that require high pressure and low flow, such as in the pharmaceutical, alcohol, food, chemical, and beverage industries
| Design standards:
The basic components of BAW centrifugal pump include: standard motor, main shaft, expansion coupling, coupling, back plate, impeller, pump body and shaft seal
For sanitary applications, the BAW centrifugal pump is equipped with a stainless steel casing protective cover to protect the motor, and each pump unit is equipped with a set of four adjustable stainless steel support feet
| Technical specifications:
Technical specifications:
Power: 2.2kw
Flow rate: 10T/H
Upgrade: 24M
Maximum inlet pressure: 500kpa (5bar)
EPDM temperature range: -10 to+140 ° C
Noise level (1 meter distance): 60-85dB (A)
Pressure: Maximum 500kpa (5Bar)
Water consumption: 0.25~0.5L/H
Steel components: 304/316L
seal up: EPDM
