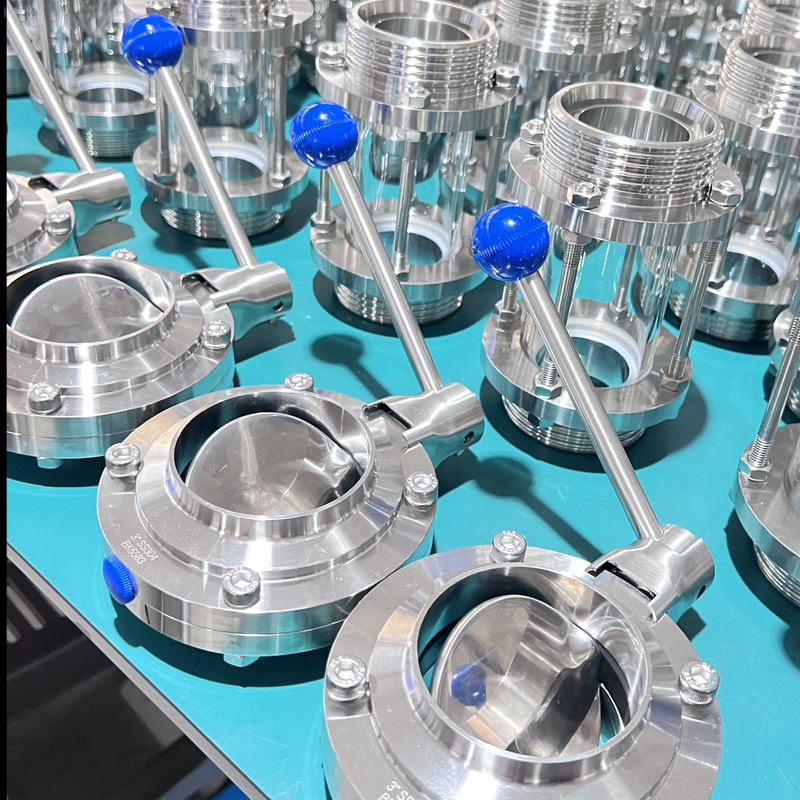

Sanitary Stainless Steel SS304/316L Manual Weld/Clamp/Thread Butterfly Valve with Multiposition Handle

Structural characteristics
Material: The valve body, butterfly plate, and sealing surface are usually made of stainless steel, such as 304, 316, or 316L. These materials have good corrosion resistance and hygiene performance.
Sealing form: divided into soft seal and hard seal. Soft seals typically use polytetrafluoroethylene (PTFE) as the sealing ring and are suitable for ambient temperature conditions; Hard sealing adopts the sealing form of stainless steel to stainless steel, suitable for high or low temperature environments.
Connection methods: Common connection methods include clamp type and flange type. The clamp type butterfly valve is easy to install and suitable for compact spaces; Flange butterfly valves have higher connection strength and sealing performance.
  • HD-BVS022

  • HAIDE

  • 848130

inch:
Availability:
Quantity:


SMS Standard


 Stainless Steel Sanitary Butterfly ValveStainless Steel Sanitary Butterfly ValveStainless Steel Sanitary Butterfly Valve




Stainless Steel Sanitary Butterfly Valves Thread End

Stainless steel sanitary butterfly valve is a valve designed specifically for sanitary applications, widely used in industries such as food, pharmaceuticals, and biotechnology. It has the following significant advantages that make it perform well in environments with extremely high hygiene requirements:


 Excellent hygiene performance


Smooth surface: The surface of the valve body and butterfly plate has been finely polished, with low surface roughness (usually Ra ≤ 0.8 μ m), no dead corners, and no residue, which can effectively prevent bacterial growth and dirt accumulation.

Easy to clean and disinfect: Designed for easy disassembly and cleaning, it can be cleaned in place (CIP) and disinfected in place (SIP) to meet strict hygiene requirements.

Pollution free: Using food grade or medical grade sealing materials such as polytetrafluoroethylene (PTFE) or silicone to ensure that the medium is not contaminated and meets international health standards such as FDA and GMP.


 Strong corrosion resistance


Material advantages: 304 or 316L stainless steel materials are usually used, which have excellent corrosion resistance and can resist the erosion of various chemical media, including acid, alkali, salt, etc.

Long term service life: It can maintain stable performance even in harsh chemical environments, reducing maintenance and replacement frequency.


 Reliable sealing performance


Multiple sealing forms:

Soft seal: Using elastic materials such as PTFE, the sealing effect is good and suitable for normal temperature conditions.

Hard seal: Adopting a sealing form of stainless steel to stainless steel, suitable for high or low temperature environments, with stable sealing performance.

Zero leakage: Under normal working pressure, zero leakage can be achieved to ensure the purity and safety of the medium.


 Flexible operation, quick opening and closing


Simple structure: The butterfly valve has a relatively simple structure, with the opening and closing components (butterfly plate) rotating around the axis, and the opening and closing actions are quick and easy to operate.

Low torque drive: The butterfly plate and valve stem are connected without a pin, which allows for flexible rotation and requires a small driving torque. It can be operated manually, electrically, or pneumatically.

Quick opening and closing: capable of completing opening or closing operations in a short period of time, suitable for process flows that require quick switching.


Wide applicability

Multiple calibers and pressure levels: The calibers range from DN50 to DN600 or even larger, and the nominal pressures range from 0.6MPa to 4.0MPa, which can meet the requirements of pipeline systems of different scales.

Suitable for multiple media: Suitable for various media such as water, steam, air, oil, acid-base solutions, etc., especially suitable for the food, pharmaceutical, and biotechnology industries with extremely high hygiene requirements.

 Easy installation and maintenance

Compact design: small size, light weight, low installation space requirements, suitable for installation in limited space.

Easy to maintain: simple structure, few components, easy and fast maintenance and replacement of seals, reducing maintenance costs.

Multiple connection methods: Provides various connection methods such as clamp type and flange type, which can be flexibly selected according to on-site needs.
