Product Introduction

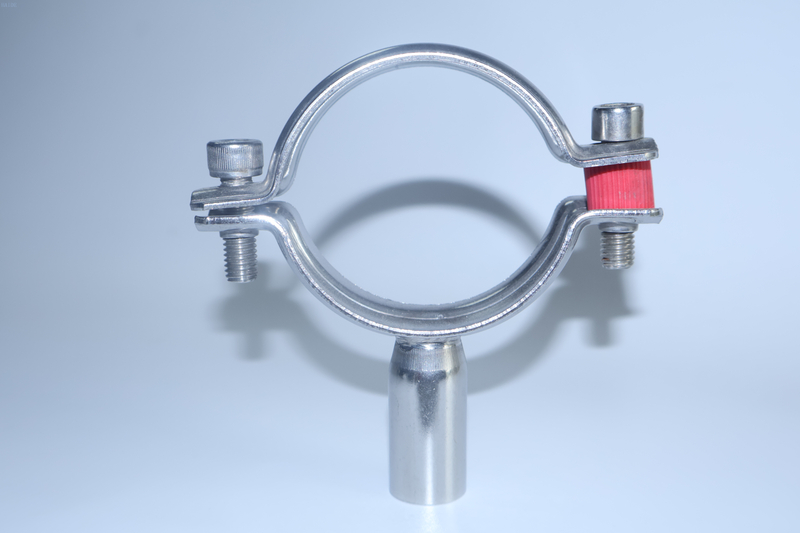

Sanitary Round Pipe Holder
| Product Advantage
Excellent sealing performance
Leak proof design: Ensure good sealing at the connection to prevent medium leakage and ensure safe operation of the system.
Multiple sealing options: Different sealing materials can be selected according to needs to adapt to different media and working conditions.
5. Easy to clean and maintain
Smooth surface: easy to clean and disinfect, meeting the high standards of the hygiene industry.
Easy maintenance: Regular inspections and maintenance are simple, reducing downtime and improving production efficiency.
6. Wide range of applications
Multi industry applicability: widely used in industries with high hygiene requirements such as food, beverage, pharmaceutical, biotechnology, etc.
Multifunctionality: Can be used for various pipeline connections to ensure pollution-free transmission of media.
7. Complies with international standards
High standard certification: Complies with international standards such as ISO, DIN, 3A, etc., ensuring product quality and safety.
High reliability: Through strict quality control, the reliability of the product is ensured under various working conditions.
| Technical Parameters
| Installation steps
preparation
Check materials: Ensure that all components (pipe sockets, sealing rings, bolts, etc.) meet specifications and are undamaged.
Clean the pipeline: Ensure that the inner wall of the pipeline is clean, free of impurities and dirt.
Preparation tools: Prepare the necessary installation tools, such as wrenches, torque wrenches, etc.
2. Install the sealing ring
Choose the appropriate sealing ring: Select the appropriate sealing material based on the medium and working conditions.
Proper placement of sealing ring: Place the sealing ring in the sealing groove of the pipe seat, ensuring that it is flat and free from distortion.
3. Connect the pipeline
Align the pipe: Align the pipe socket with the pipe to ensure a smooth connection.
Inserting the pipeline: Insert the pipeline into the socket, ensuring that the insertion depth meets the requirements.
4. Tighten the bolts
Preliminary tightening: Use your hands to preliminarily tighten the bolts to ensure that the pipe seat is in contact with the pipeline connection.
Diagonal tightening: Use a wrench or torque wrench to gradually tighten the bolts in diagonal order, ensuring even force distribution.
Reaching the specified torque: According to the product manual or standards, use a torque wrench to tighten the bolts to the specified torque value, avoiding over tightening or over loosening.
5. Check the sealing performance
Visual inspection: Check for obvious gaps or misalignment at the connection points.
Stress testing: Conduct a stress test to ensure that there are no leaks at the connection. Water or gas can be used for testing, and the appropriate testing pressure can be selected based on the working pressure.
6. Final inspection
Confirm installation: Confirm that all bolts are tightened in place and the sealing ring is not displaced.
Record installation data: Record installation dates, torque values, test results, and other data for future maintenance and inspection.
7. Maintenance and upkeep
Regular inspection: Regularly check the sealing of the connection and the tightening of the bolts, and promptly address any issues found.
Cleaning and maintenance: Regularly clean the pipe sockets and pipelines to ensure their hygiene performance.
|
