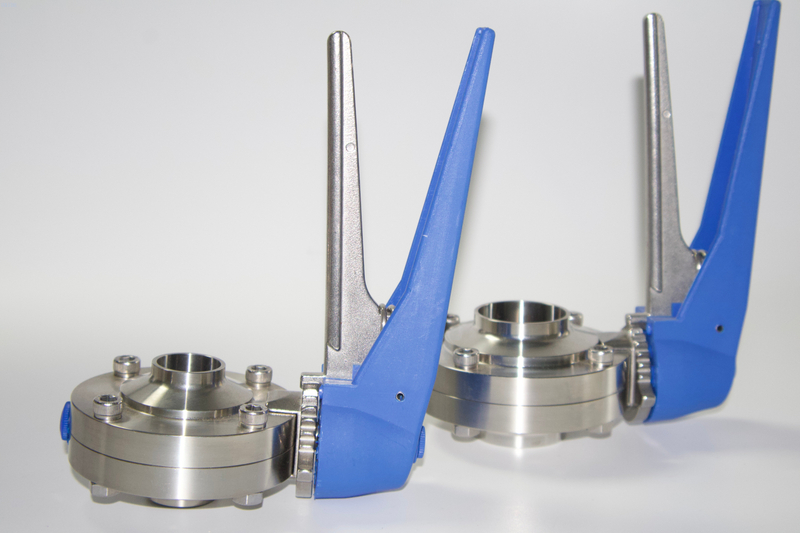

304/316L Stainless Steel Sanitary Hygienic Butterfly Valve Handle Type

Material: The valve body is usually made of 304 or 316L stainless steel.
Sealing material: The standard configuration includes EPDM, silicone, or Viton, which comply with FDA standards.
Operation mode: manual, pneumatic or electric operation can be selected.
Connection methods: Supports various connection methods such as Tri Clamp, Weld, Flange, etc.
  • HD-BVS088

  • HAIDE

  • 848130

inch:
Availability:
Quantity:


 Stainless Steel Sanitary Butterfly Valves Clamp End SMS Standard


 Stainless Steel Sanitary Butterfly ValveStainless Steel Sanitary Butterfly ValveStainless Steel Sanitary Butterfly Valve

Stainless steel sanitary butterfly valve is a sanitary grade valve designed specifically for industries such as food, beverage, pharmaceutical, biotechnology, and cosmetics. It has the following significant features that enable it to meet strict hygiene and operational requirements:


Sanitary design

Smooth surface: The inner surface has undergone fine polishing treatment, usually with a polishing degree of less than 32Ra (roughness unit), which can effectively reduce bacterial growth and residual pollutants.

No dead corners design: The internal design of the valve has no dead corners, making it easy to thoroughly clean and disinfect, suitable for CIP (cleaning in place) and SIP (sterilization in place) processes.

Compliant with hygiene standards: Compliant with international hygiene standards such as FDA, USDA, 3A, etc., ensuring safe use in industries such as food and pharmaceuticals.


Material

Valve body material: Usually made of 304 or 316L stainless steel, these materials have good corrosion resistance and mechanical properties.

Sealing materials: Sealing rings are usually made of EPDM (ethylene propylene diene monomer rubber), silicone or fluororubber (Viton), which comply with FDA standards and are suitable for the food, beverage and pharmaceutical industries.


Operation method

Manual operation: Equipped with a multi position handle that can be locked in multiple positions for precise control.

Pneumatic or electric operation: Pneumatic or electric actuators can be selected to achieve remote control and automated operation.


Connection method

Multiple connection methods: Supports various connection methods such as Tri Clamp, Weld, Flange, etc., making it easy to integrate with different pipeline systems.


Durability and reliability

High durability: The stainless steel material and high-quality sealing material ensure the durability and stability of the valve during long-term use.

Corrosion resistance: 304 and 316L stainless steel have good corrosion resistance and can adapt to various working environments.


Quick disassembly and assembly

Easy to maintain: Designed for quick disassembly and cleaning, reducing maintenance time and costs.


Applicable range of temperature and pressure

Working temperature: The working temperature range of EPDM sealing material is -10 ° C to 120 ° C.

Work pressure: The maximum work pressure is usually 10 bar.


Size Range

Multiple sizes: ranging from 1/2 inch to 12 inches, capable of meeting the flow control needs of different pipeline systems.
