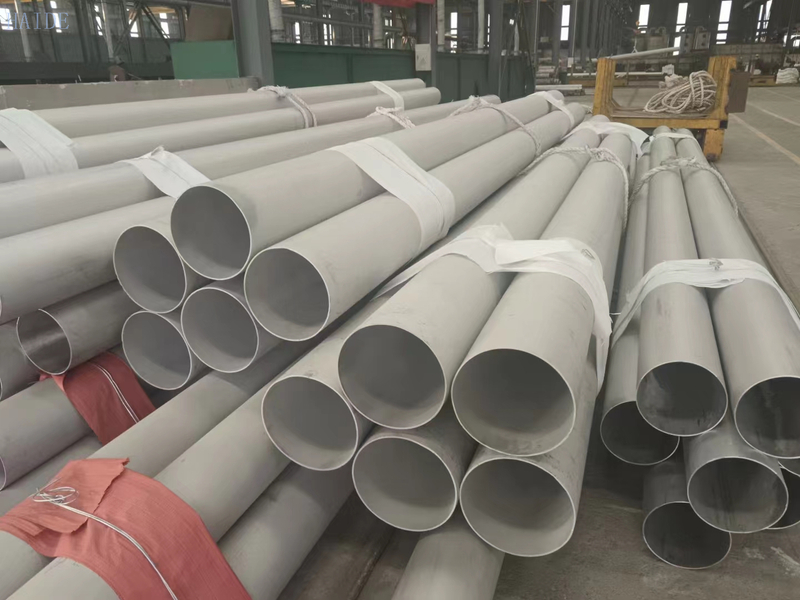

ASTM A269-270 Stainless Steel Round Tube Pipe Anneald Cleaned


The production process of stainless steel round pipes mainly includes the following:
Cold drawing process
Characteristics: Stainless steel round tubes produced through cold drawing process have high dimensional accuracy and surface smoothness. During the cold drawing process, the pipe is stretched through a mold at room temperature to reduce its diameter, achieve uniform wall thickness, and improve the mechanical properties of the material.
Application: Suitable for occasions with high requirements for dimensional accuracy and surface quality, such as precision instruments, medical devices, aerospace and other fields.
hot-rolling process
Characteristics: The hot rolling process is carried out at high temperatures, and the tube blank is formed into a pipe through rolling. The wall thickness of hot-rolled pipes is relatively thick, with slightly lower dimensional accuracy, but high production efficiency, suitable for large-scale production.
Application: Commonly used in applications such as building structures, mechanical manufacturing, petrochemicals, etc. that require high wall thickness.
procedure
Characteristic: The welding process is to weld stainless steel plates or strips into pipes. The production cost of welded pipes is relatively low, and the quality of the pipes can be ensured by controlling the welding process parameters.
Application: Widely used in fields such as architectural decoration, furniture manufacturing, and general industrial pipelines.
  • HDP-013

  • HAIDE

Availability:
Quantity:

ASTM A269 and A270 are two common stainless steel pipe standards. The following is information about ASTM A269-270 stainless steel round pipes (annealed and cleaned):

Material and specifications

Material: Stainless steel materials such as SUS304 or SUS316L are usually used.

Size range: Diameter ranging from 1/2 inch to 6 inches (DN10-DN150), with wall thickness generally between 1.5-3mm.

Surface Treatment

Annealing: ASTM A269 and A270 standards both require materials to undergo heat treatment, typically annealing (also known as solution treatment or solution annealing). The surface after annealing is usually referred to as the "bright annealed" surface, which can make the surface of the pipe free of oxide scale.

Cleaning: Cleaning treatment includes removing dust, dirt, and grease from the surface. For stainless steel pipes in pharmaceutical water systems, industrial alcohol or carbon dioxide is usually used for degreasing treatment. In addition, mild cleaning agents can also be used for cleaning.

Polishing: According to specific requirements, the inner and outer surfaces of the pipe can be mechanically polished or electrolytically polished to achieve a mirror effect, and the surface roughness Ra value can be controlled within ≤ 0.8 μ m.

characteristic

Appearance: It has a good appearance, smooth surface, and no obvious defects.

Corrosion resistance: Due to the use of high-quality stainless steel material, the pipe has good acid and alkali resistance and corrosion resistance after annealing and cleaning treatment.

Mechanical performance: Although A269 does not require tensile testing, hardness testing as well as flange and reverse flattening testing are required.

application area

Food and beverage industry: suitable for occasions with high hygiene requirements such as food processing and beverage production.

Chemical and pharmaceutical industries: can be used for transporting chemical drugs, pharmaceutical water, etc.

Biotechnology and cosmetics industries: They are also widely used in these industries that require extremely high hygiene and cleanliness.
